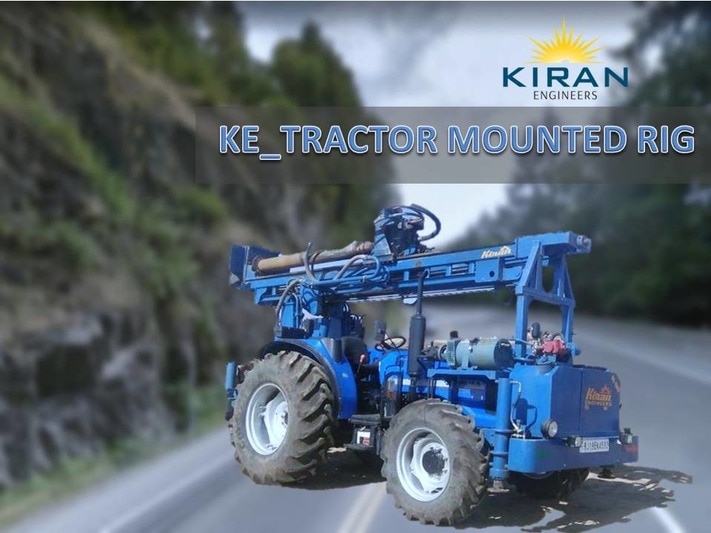

The KMTRACTORMOUNTEDRIG- Model is ideal for foundation / pilling drilling application in rock and soft formation, rock formation using DTH and soft formation using Auger, we make it simple and compact design, excellent performance, high accessibility and reliability at afford cost in it's class, The KMTRACTORMOUNTEDRIG rig's flexibility means it will be mounted on tractor and air compressor will be mounted on separate trolley or truck. Drilling Diameter - 4.5" - 6"(114mm - 151mm) Drilling Depth - 490Feet (150 Mtrs) Formation / Strata - Soft / Medium / Hard PRIME MOVER OF Hydraulic - Pumps Power Take off from Tractor Engine CARRIER / MOUNTING - Tractor 4 Wheel Drive COMPRESSOR - Suitable Compressor ELGI / ATLAS COPCO / IR Maximum Operating Pressure - 180 Kg/Cm2 MAST Capacity (WT) - 10 Tons MAST Capacity (Rod Handling) - 10 Feet (3.0 Mtrs) Pull Up Speed - 16 Mtr/Min Pull Down Speed - 35 Mtr/Min Pull Up Force - 4500 Kgfm Pull Down Force - 2300 Kgfm ROTATION SPEED - 0-100 Rotary Head TORQUE - 235 Kgm UNDER CARRIAGE Drive -Independent Hydraulic Motor for Each Track Note : Due to continuous development all the above specifications are subject to change
