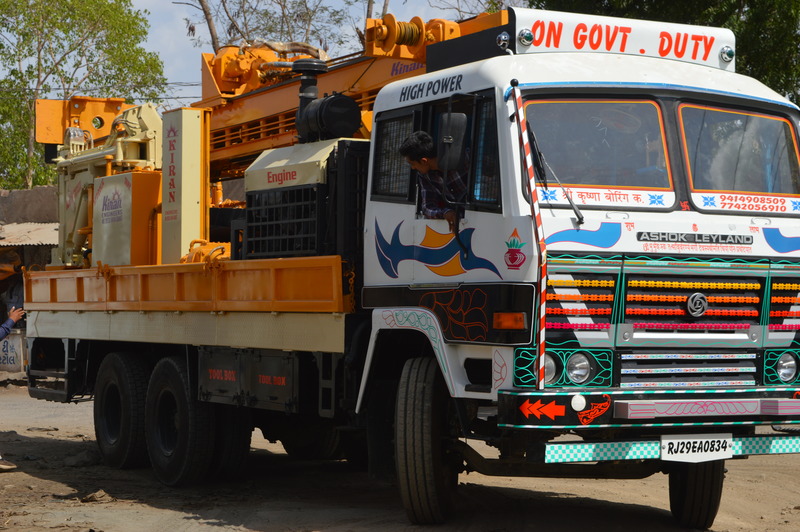

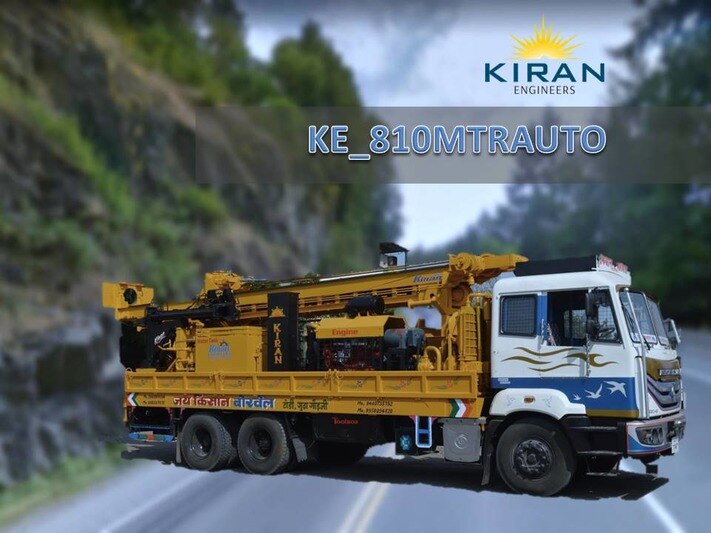

KE810MTRAUTO- Model Top Drive Drill Rig Is Capable Of Drilling In Different Formations, Such As a Medium To Hard Rock by Dth Unconsolidated / Alluvial formations using Air / Water / Water Flush by Rotary Method, Up To a Depth Of 810 Mtr(2600 Feet), Under Favorable Drilling Conditions, The Following Are The Detailed Specifications DTH Drilling Rig Machines. Drilling Diameter - 6.5" (Continues)9", 10'', 12'' Drilling Depth - 2650 Feet (810 Mtrs) Formation - Soft / Hard Rock Prime Mover - Truck Engine /DECK ENGINE/ As per Customer Request Carrier - Two Separate Truck for Mounting of Rig & Air Compressor Hydraulic Oil Tank Capacity - 800 Ltrs Mast - Hydraulic cylinder with pulley & wire rope. Max. Pull Up Force - 15200 Kgs Max. Pull Down Force - 7200 Kgs Max. Pull Up Speed - 45 Meter/Minute Max. Pull Down Speed - 60 Meter/Minute Mast Capacity (Rod Handling) - 20 Feet (6.1 Mtrs) Rotation Speed - 0-100 Rpm Rotary Head - Max. Speed 0-170 Rpm / Max. Torque 280 Kg Levelling Jack - Four Hydraulic Levelling Jack Rod Changer - Automatic Hydraulic Operated Rod Changer To Handle Single Rof With 1000Kg. Air Compressor - 1200 Cfm-320Psi / 1100 Cfm-300Psi / As Per Customer Request Note : Due to continuous development all the above specifications are subject to change
