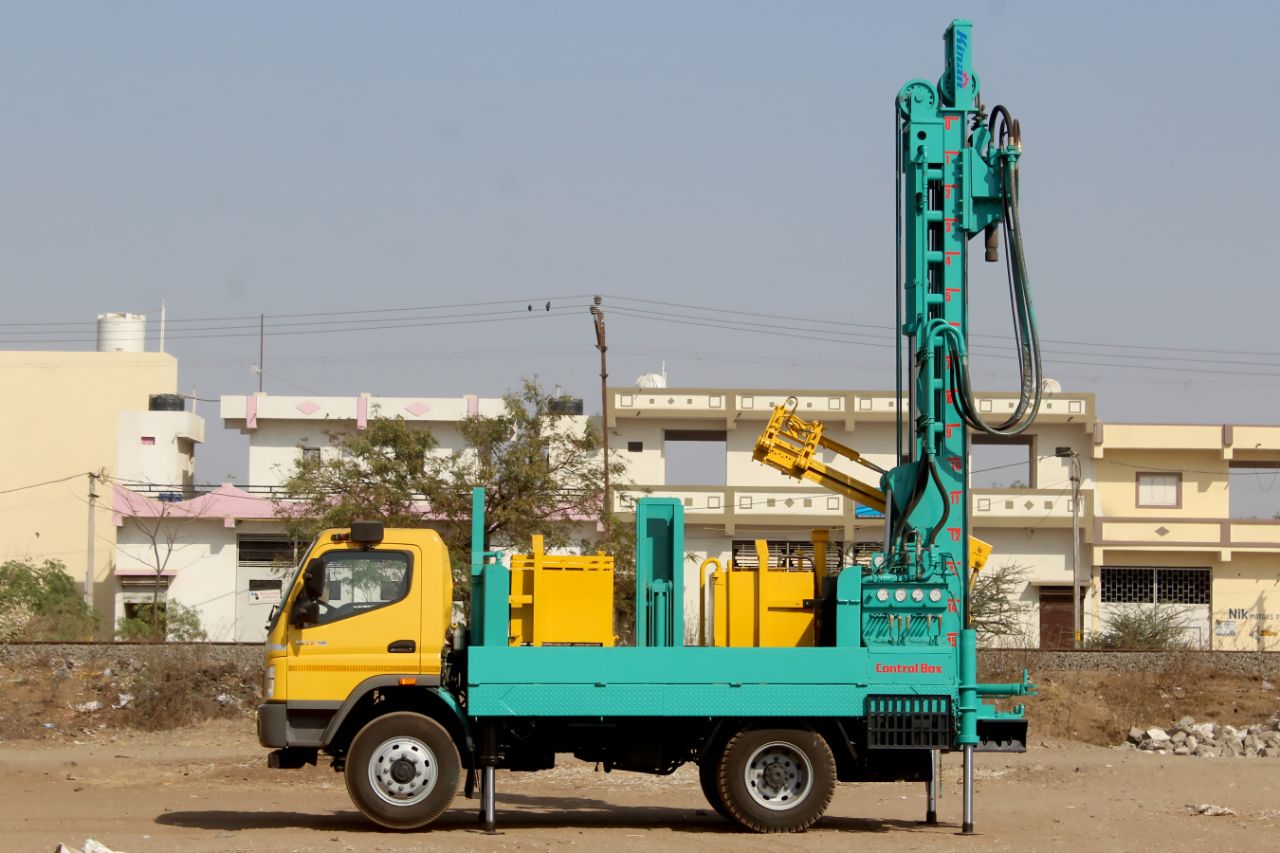

DTH DRILLING RIG -KM345MTRAUTO Model, Top drive drill rig is capable of drilling in different formations, such as a medium to hard rock by DTH unconsolidated / Alluvial formations using Air / Water / Water flush by rotary method, up to a depth of 345 Mtr(1130 Feet), under favorable drilling conditions, The following are the detailed specifications DTH Drilling Rig Machines. * Drilling Diameter - 6.0" - 10"(152mm - 254mm) * Drilling Depth - 1128 Feet (345 Mtrs) * Formation - Soft / Medium / Hard * PRIME MOVER OF Hydraulic Power Pack - Truck Mounted Rig with Power from TRUCK ENGINE/DECK ENGINE * CARRIER / MOUNTING - Truck for Mounting of Rig & Air Compressor * COMPRESSOR - Suitable Compressor ELGI /ATLAS COPCO /IR * Maximum Operating Pressure - 230 Kg/Cm2 * Hydraulic Oil Tank Capacity - 500 Ltrs * MAST Capacity (WT) - 26 Tons * MAST Capacity (Rod Handling) - 12 Feet (3.1 Mtrs) * Pull Up Speed - 21 Mtrs/Min * Pull Down Speed - 33 Mtrs/Min * Pull Up Force - 20940 Kgfm * Pull Down Force - 10680 Kgfm * ROTATION SPEED - 0-135 Note : Due to continuous development all the above specifications are subject to change
